Environmental
Testing Facilities Div.
|
|
CBI
understands that every end user 's needs may be unique ,As partner
of Italy Angelantoni-ete Div.in China,we provide many different kinds of chambers to meet requirement
for each individual application of test. Over past years in China,
CBI has been
building up our professional sales team and service centers for maintenance,
training, and consultants service, which was established under fully cooperation
and technical supporting from ete side, JV cooperation company
"Angelantoni science and technoloyg(AST) has been playing more
and more important role as Regional DEMO,Service and Training center
in Southern part of China since 2001.
|
|
（1）Climatic and thermostatic chamber |
|
Model |
|
| |
―20℃
―40℃~ +180℃
―75℃
|
| |
10~98%RH (+5C°~+95C°) |
| |
224, 336, 557, 1152, 1535,
2040
|
| |
Single -stage or double-stage
Air /water cooling System
|
Control System
and Display
|
1. TFT touch – panel color
LCD Display (internal PLC controller,running under Windows 98)
2. STN touch – panel color LCD monitor
3. TFT true color LCD monitor
|
| |
WinKratos® is the
new-generation control and management system for Single
/Multi-Chambers connection Version.
|
| |
 |
|
| |
|

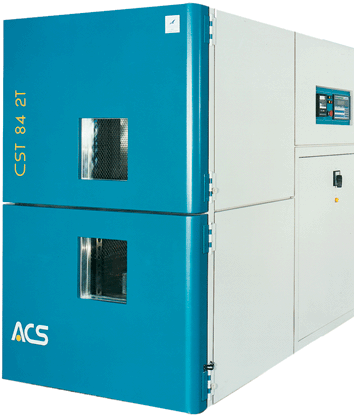

（2）Thermal
shock chamber |
|
High Temperature |
Room Temperature ~ +200C° |
|
Low
Temperature |
+60 ~ - 70C°(
- 80C°) |
|
Normal
Temperature Zone |
- |
+20℃ ∽ +25℃ |
|
Recovery
Time
in
Air |
2 min in the
range -55/125C°
5 min in the
range -65/+150C°
|
| Capacity
( L ) |
Stand Mode:
27, 84, 157, 320
Horizontal: 500, 1000
|
| |
 |
|
|
|
|
|

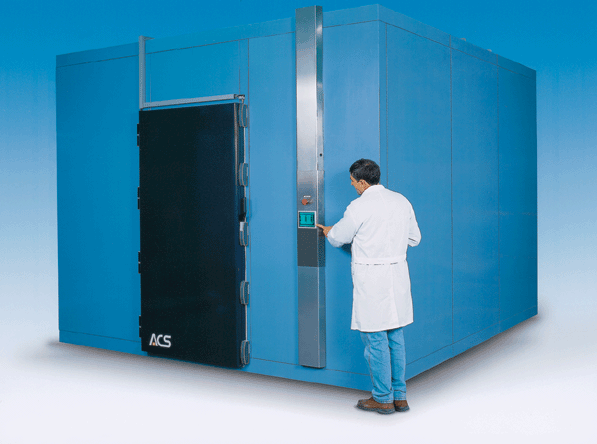

（3）Stardard Wazzle Climate Walk-in
Chamber |
|
Model |
ete Walk-in Chamber |
|
Temperature Range ( C° ) |
―40℃/+80℃
―70℃/+80℃ |
| Capacity |
10m3℃16m3℃30m3℃40m3 |
| Refrigerator unit |
Single -stage or double-stage Air /water cooling System |
| Controller |
1. TFT touch – panel color LCD Display (internal PLC controller,
running under Windows /Windows2000)
2. STN touch – panel color
LCD monitor
3. TFT true color LCD monitor |
| Box Body |
Galvanized Steel Panel Spray Plastic of the Casing, Stainless
Steel of the Interior Bladder, Insulation thickness:120mm |
|
 |
|
|
|
|
note）Contents with （ ） are illustration parameters of volume.
Besides the above facilities, we also provide other experiment
facilities of high-speed temperature-changing chambers （UP TO
60C°/minute), low air pressure experiment chambers, integrated
experiment chamber, accelerated aging experiment chamber（HAST / HLAT）,
Solar Box, Ring spraying etc. Consultation is welcomed. |
|
 |
|
